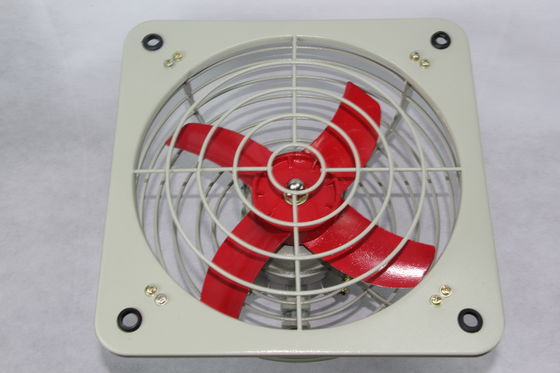

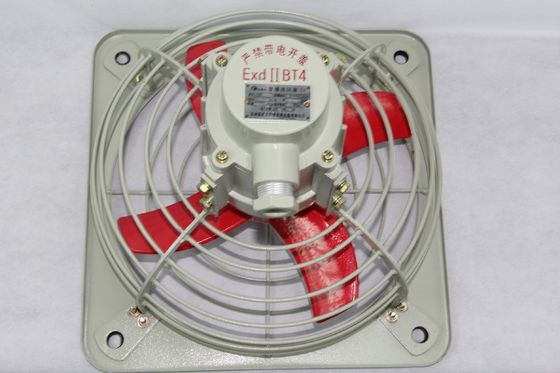

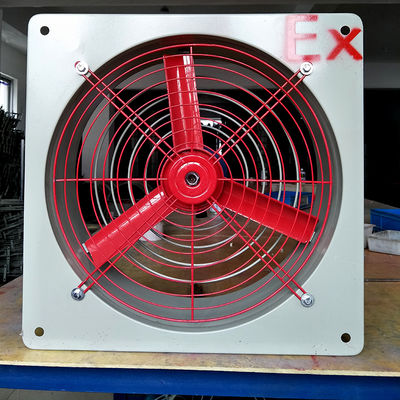

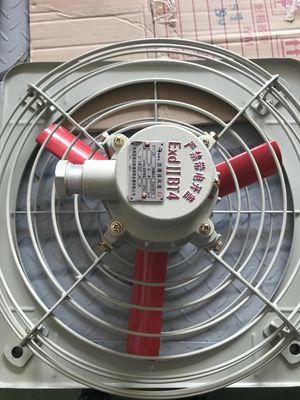

ATEX Certificate IP54 Explosion Proof Exhaust Fan Diameter 200-500mm For Zone 1.2 And IIA IIB

2. With explosion-proof motor

3. Strong anti-corrosion ability

4. Multiple installation methods

5..Different impeller speed or motor power, air flow for choice

6.Air duct of explosion proof axial flow fan is formed by welding of quality steel plate, and the fan blades are cast in aluminum alloy and with high voltage plastic-sprayed surface.

7. Aestheetic appearance, integrated ong-body assemble frame, safe and secure, with damping device and low-operating noise.







Type	BFC
Ex rate	Ex d IIB T4 Gb
Degree protection	IP54
Rated voltage	220/380VAC
Size of blade[mm]	300, 400, 500, 600
power consumption[w]	120; 180; 250; 370
Air volume[m³/min]	2200; 2400; 4900; 9500



Power	120-750w
Ex Mark	Ex db IIC T4 Gb
Protection	IP54 WF1/WF2
RPM	1450r/m
CFM	2000-9500m³/h
Diameter	200-500mm
Mounting	wall



Type	A	B	C
BFC-300	350	292	280
BFC-400	480	388	280
BFC-500	590	466	280
BFC-600	710	525	310





Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
