تفاصيل المنتج:
|
| ماركة: | التاج إضافي | اسم المنتج: | دليل الخروج من إثبات الانفجار /BYY |
|---|---|---|---|
| السكن: | ألومنيوم يموت | كري: | RA: ≥70 |
| كفاءة: | 100lm/w | معتمد: | CNEX ، EX ، IP66 ، IEC ، IECEX |
| CCT: | 5500-6500K | تصاعد: | حائط |
| الجهد االكهربى: | 220VAC 24/36VDC | ||
| إبراز: | 220V explosion proof exit light,3W LED flameproof emergency light,impact resistant exit sign light,3W LED flameproof emergency light,impact resistant exit sign light |
||

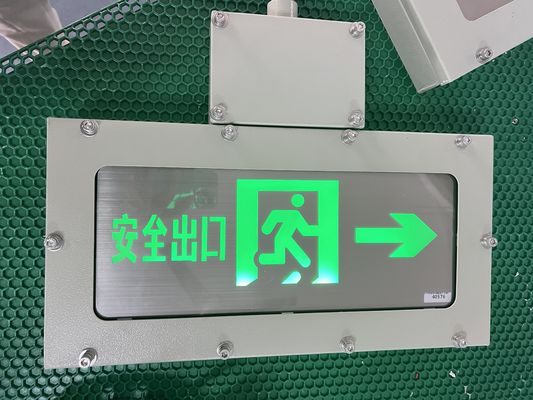

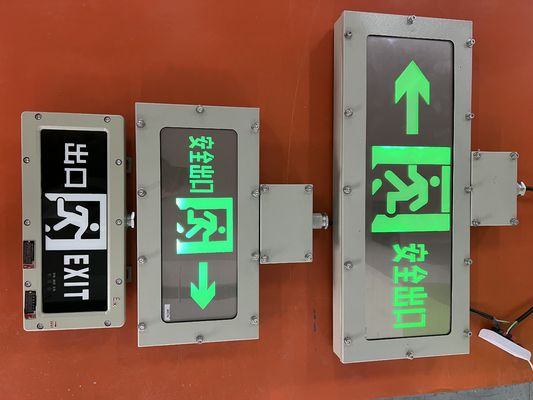

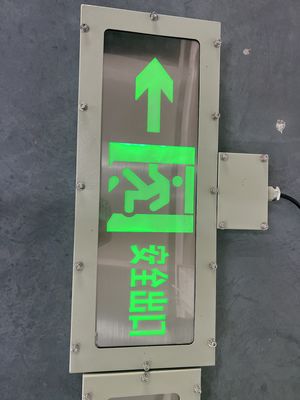

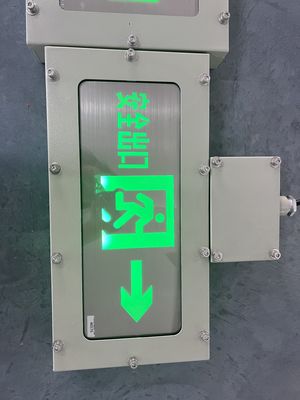

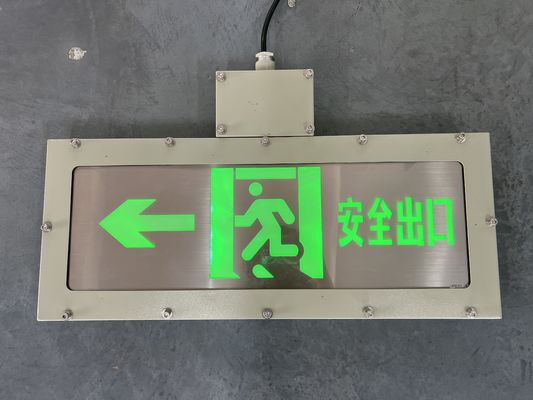

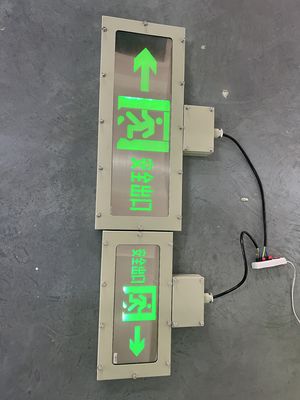

BYY Series
Features:
Applications
|
Explosive hazardous atmosphere Zone 1, 2 & Zone 21,22
|
| Widely used for safety exit indication and marking on various marine platforms, chemical tankers, LNG ships and dangerous cargo wharfs ect. |
| Can reliably work in severe environment where is easily affected by moisture, vibration, or corrosion. |
| Housing: | Die-casting aluminum |
| Exterior: | Stainless steel |
| Globe: | Tempered glass |
| Gasket: | Silicon rubber |
| Certifications |
ATEX
CNEX
CE
RoHS
ISO9001
|
| Ex Marking | Ex e IIC T6/ Ex tD A21 T80℃ |
| Application | Zone 1, 2 & Zone 21, 22 |
| IP Degree | IP65 |
| Corrosion Resistant | WF1 |
| Wattage | 1.5-3W |
| Entries | G 3/4" Conduit Entry, Suitable for Φ10mm-Φ14mm cable |
| Input Voltage | DC 110V;AC220V 50Hz |
| Red Lettering | Optiional |
| Back-up Battery | >120 min |
| Weight | 3.25kg |
| Mounting Styles | Pendant; Ceiling; wall |
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
